geoCallout®

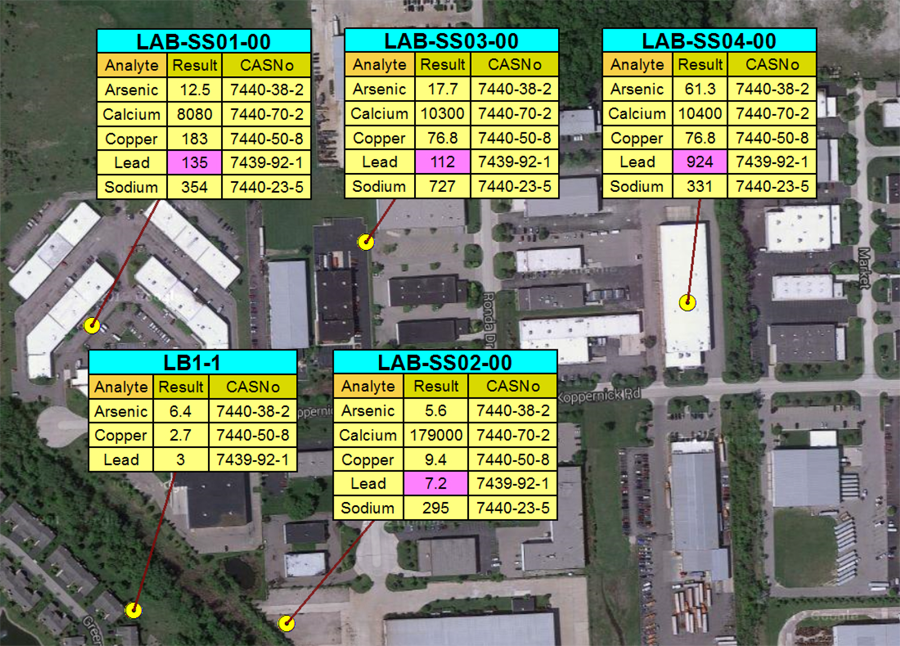

geoCallout® is an Add-In Utility for Esri ArcGIS Desktop (versions 10.5, 10.4, 10.3, 10.2, 10.1, 10.0). geoCallout® produces smart callouts encompassing tabular data with the custom leader-lines attached to respective map features. Its outputs are highly customizable and works with points, polylines or polygons geographic features.

Some GIS specialists may utilize this tool for the creation of illustratively appealing chem-boxes or data-tables to represent their complex environmental data for ESA/Phase II reports. geoCallout® is a powerful tool to provide a dynamic interface between the analytical and spatial data.

GIS analysts and specialists embrace this utility, which solves their frustrations with standard ArcGIS toolset's limitations. This value added dimension will be warmly embraced by department personnel, due to the option of generating smart callouts into custom map layouts.




Key Features


  • Intuitive, easy to use and interfaces seamlessly to ArcGIS Desktop
  • Processes and validates custom queries on active view's selected map layer data
  • Queries to select fields for rows and columns in interactive and exclusive fashion
  • Yields dual-header tables, with styling and formatting options, for headers and cells
  • Rows and columns can be interchanged and color-coded
  • Colors individual cell depending upon custom criteria (=, <, >, >=, <=, <> [value])
  • Allows to style output fields data on any field in the map layer whether displayed or not
  • Generates tabular callouts which are movable and resizable
  • Allows corresponding leader-lines to be presented in multiple colors and styles
  • Allows users to save their selected options as configuration for future processing



Email us at geoCallout@anantics.com or call us at phone number 248.353.4090 for its demo or more information about geoCallout®.
